LPG Tanker Semi Trailer
Cost-effective lpg tanker trailer cuts your fuel & repair cost, our lpg tank trailer features wear-resistant steel to extend service life and improve investment return. Inquire for price to save your procurement budget!
LPG Tanker Semi Trailer
- Home
- > Product
- > Semi Trailers
- > LPG/LNG Trailer
- > LPG Tanker Semi Trailer
LPG Tanker Semi Trailer
Send Inquiry
Chat Now
Product Details
Product Display

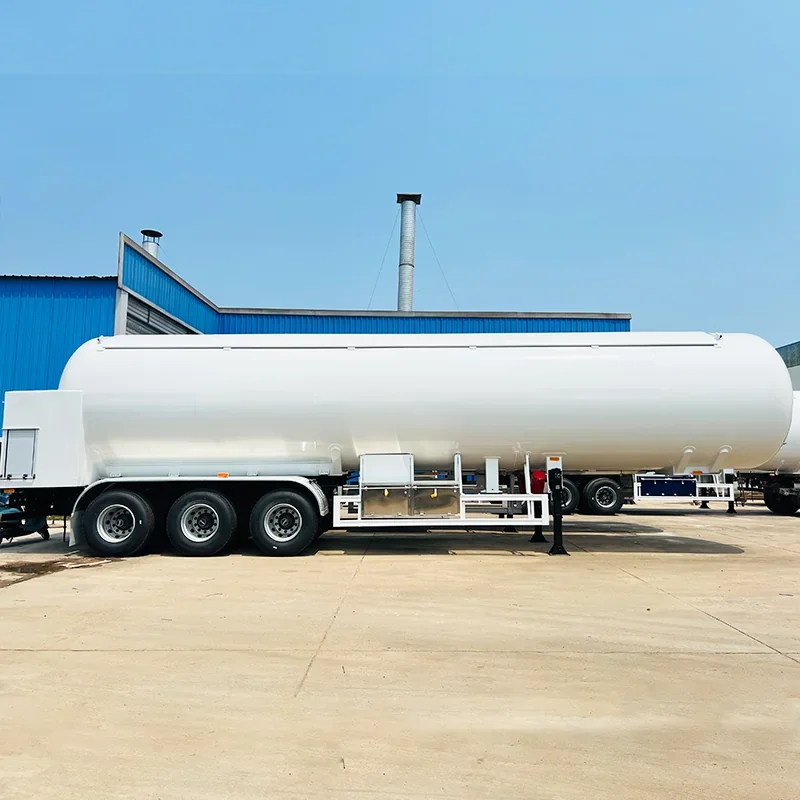

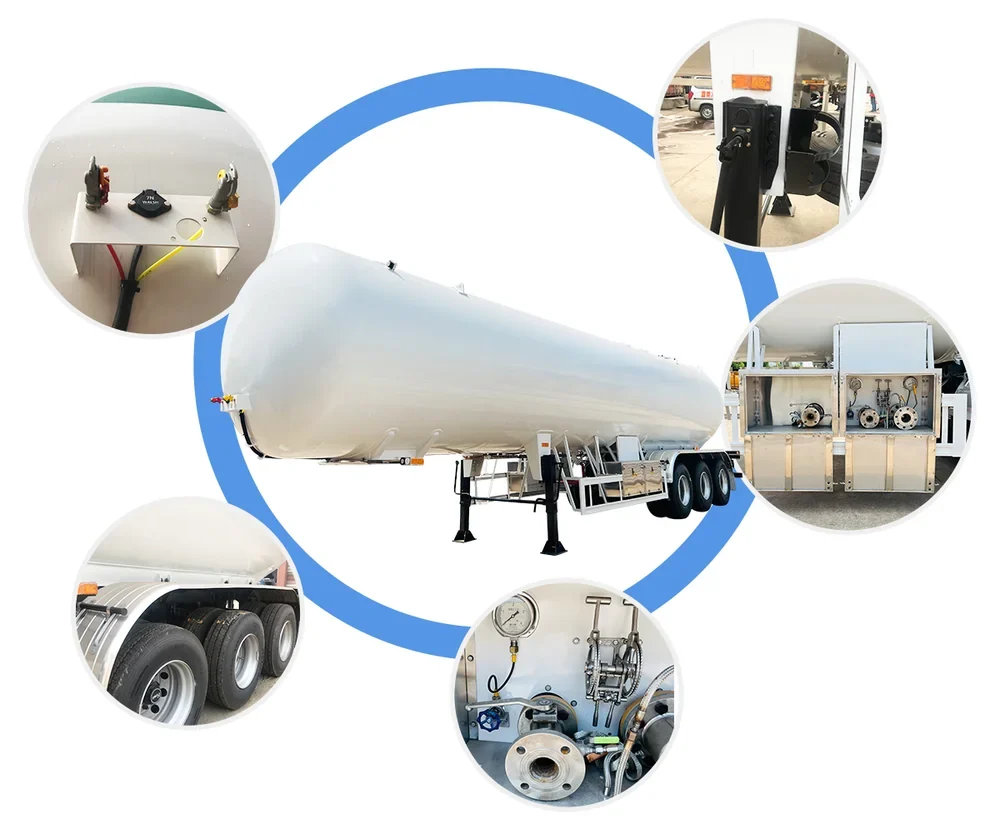

Our lpg tanker semi trailer adopts seamless cylindrical tank body with polished anti-corrosion coating, matched with tri-axle heavy-duty suspension system and standard pneumatic brake system. Equipped with complete safety valve set, pressure gauge and liquid control valve assembly shown on accessory details, this lpg tank trailer supports customized tank volume ranging from 25CBM to 60CBM.
Product Details
Tank Body: Made of Q345R special pressure vessel steel, one-time rolling forming, full penetration welding & hydraulic leakage test before painting, anti-rust epoxy paint for long-term outdoor use;
Valve Assembly: Full set of import-standard LPG control valves, pressure monitoring gauge, safety relief valve installed on manhole position for pressure real-time monitoring;
Chassis & Landing Gear: High strength carbon steel frame + heavy duty mechanical landing legs to support parking without tractor, tri-axle with balanced suspension to reduce bump damage during road transportation;
Anti-leak Structure: Dual sealing design on all pipe joints to avoid medium leakage during LPG loading & unloading.
Ready to enhance your transport efficiency?
Product Parameters
| Specification | Parameter |
| Product Name | Lpg Tank Trailer |
| Tank Volume | 25CBM ~ 60CBM (Customizable) |
| Tank Material | Q345R Pressure Vessel Steel |
| Axle Configuration | 3×Heavy Duty BPW/FUWA Axles |
| Tire Spec | 12R22.5 / 11.00R20 Tubeless Tire |
| Working Pressure | 1.6MPa Standard Design Pressure |
| Suspension | Mechanical Air Suspension Optional |
| Total Weight | GVW: 40~60Ton Depends on Capacity |
Product Application

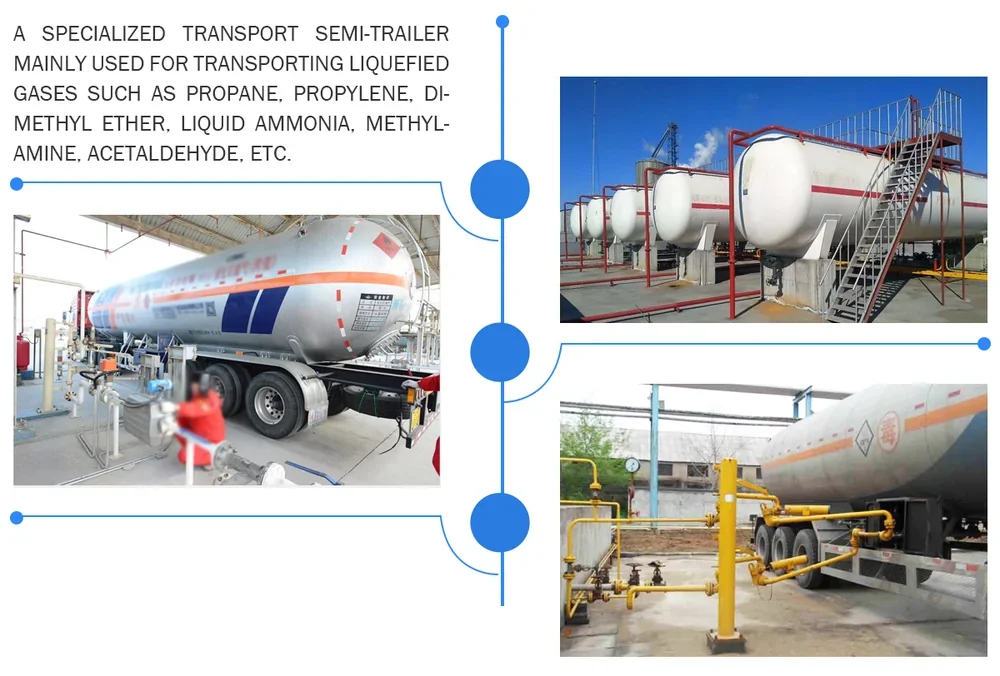

Aspecializedtransportsemi-Trailer Mainly Used For Transporting Liquefied Gases Such As Propane,Propylene,Dimethylether,Liquid Ammonia,Methylamine,Acetaldehyde,Etc.
Packaging And Transportation
For bulk export of our lpg tanker trailer, we mainly adopt two mainstream ocean shipping solutions: 1. Break bulk vessel shipment: Directly load finished semi trailers onto open deck of bulk cargo ship after rust-proof wax spraying on exposed metal parts, fit for full container oversized tank semi-trailer; 2. Ro-Ro ship transport: Drive completed lpg tank trailer onto roll-on roll-off vessel, applicable for large order batch delivery with fast loading efficiency. All exposed pipeline & valve fittings are wrapped with moisture-proof plastic film to avoid sea salt corrosion during long sea transit.
Ready to enhance your transport efficiency?
Customer Visit
The real-life photos include buyers from multiple countries in Africa, Southeast Asia, and the Middle East visiting the factory for on-site inspections. After verifying the product quality on site, bulk procurement cooperation was finalized; Relying on stable product quality and on-demand customization services, we continue to receive repeat orders from our global loyal customers.
Certificate
The factory has a complete set of qualifications, including ISO9001 quality management system certification and specialized vehicle production qualification; All products are produced in accordance with the national standard for pressure vessels throughout the entire process, and each finished product undergoes quality inspection before leaving the factory. The full set of compliance qualifications helps customers from various countries smoothly clear customs and ensure quality compliance.
FAQ
1.who are we?
We are based in Shandong, China, start from 2016,sell to Africa(49.40%),Southeast Asia(29.10%),South America(4.60%),Mid East(4.00%),South Asia(2.90%),Domestic Market(1.60%),Eastern Asia(1.40%),Oceania(1.00%),North America(1.00%),Southern Europe(1.00%),Northern Europe(1.00%),Central America(1.00%),Western Europe(1.00%),Eastern Europe(1.00%). There are total about 11-50 people in our office.
2.How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.What can you buy from us?
Flatbed Trailer,Low Bed Trailer,Skeleton Trailer,Fuel Tanker Trailer,Bulk Cement Trailer,Dump Trailer,Fence Trailer
Dump Truck,Tractor Truck,Concrete Mixer Truck,Fuel Truck,Water Truck,Mechanical Equipment And Semi-Trailer Parts For Trucks, Etc.
4.Why should you buy from us not from other suppliers?
We company is located in the superior environment of Jinan,Shandong province. We company has advanced production processing equipment to ensure the quality of the products!And we company's products are exported to overseas countries at present with a good prospects.
5.What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
