Shacman F3000 380 Dump Truck
Send Inquiry
Product Details
Product Display

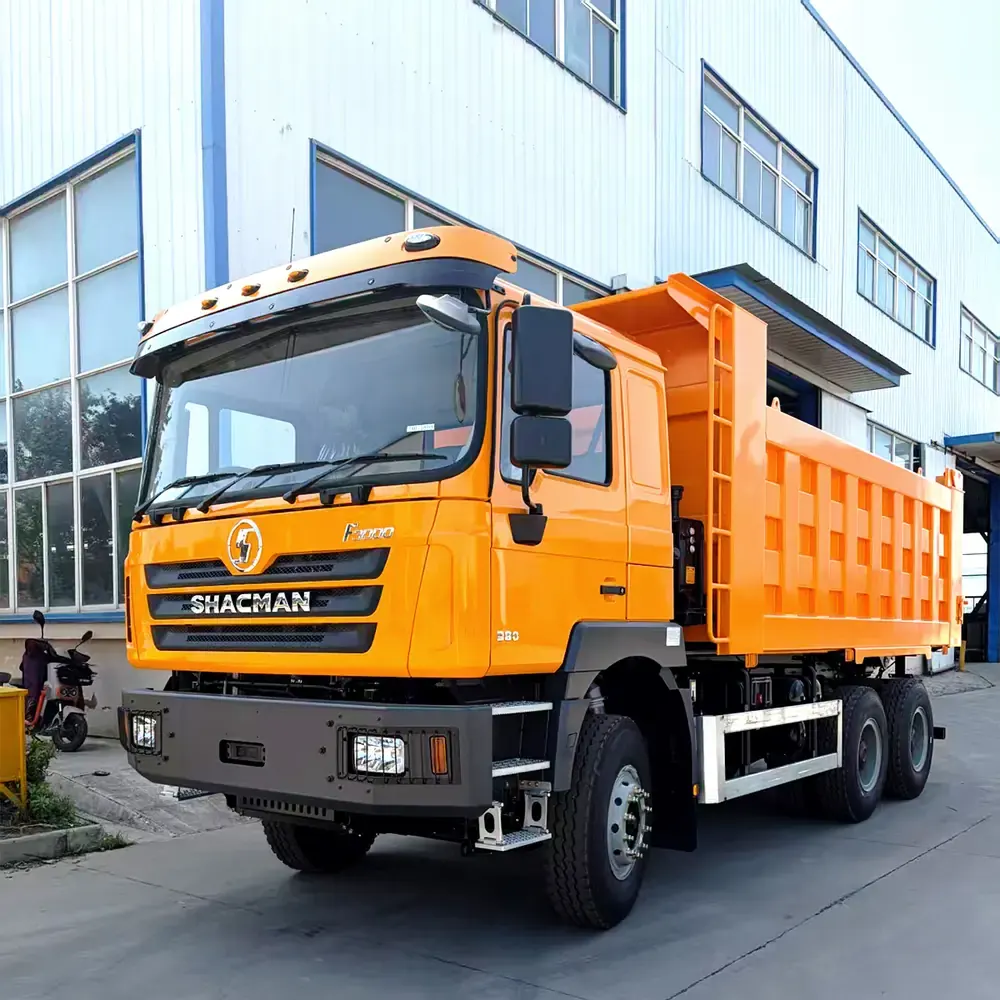

The Shacman F3000 380 dump truck is a heavy-duty tipper truck built for harsh construction and mining hauling tasks. It adopts reinforced cargo body, 380hp powerful engine and ergonomic cab design, delivering stable loading, strong lifting performance and long service life for bulk material transportation.
Ready to enhance your transport efficiency?
Product Parameters
| Parameter | Specification |
|---|---|
| Vehicle & Chassis | |
| Model | Shacman F3000 380 Dump Truck (SX3255DT384) |
| Drive Type | 6×4 (Ten Wheels, Rear Tandem Drive) |
| Cab Type | F3000 Single Sleeper Cab with Air Conditioner |
| Max. Speed | ≈ 90 km/h |
| Engine & Transmission | |
| Engine Model | Weichai WP10.380 (9.726 L) / WP12.380 (11.596 L) |
| Horsepower | 380 HP (279 kW) @ 2200 rpm |
| Max. Torque | ≈ 1,500 N·m @ 1200–1600 rpm |
| Fuel Type | Diesel |
| Transmission | Fast (FAST) 12-Speed Manual, 12JS160T / 12JS180T |
| Clutch | Φ430 mm Single Dry Plate |
| Axle, Suspension & Chassis | |
| Front Axle | 9 T Forged I-Beam, Non-Driving |
| Rear Axle | 2 × 16 T Double-Reduction Drive Axle |
| Suspension | Heavy-Duty Multi-Leaf Spring Suspension |
| Frame | 850 × 300 mm, (8+8) mm Double-Layer Straight Beam |
| Brake System | Dual-Circuit Air Brake with ABS |
| Tire Size | 12.00R20 Mining Off-Road Tyre (10 pcs + 1 Spare) |
| Fuel Tank | 400 L Aluminium Alloy Tank |
| Dump Body & Hydraulic System | |
| Cargo Box Size | 5,800 × 2,300 × 1,500 mm (L × W × H) |
| Cargo Box Volume | ≈ 20 m³ (Flat Loaded) |
| Cargo Box Material | 8 mm High-Manganese Steel Floor / 6 mm Side Plate |
| Lifting System | Front-Mounted Hydraulic Tipping Cylinder |
| Weight & Dimensions | |
| Curb Weight | ≈ 13,500 kg |
| Rated Payload | 25 – 30 Metric Tons |
| Wheelbase | 3,800 + 1,350 mm |
| Overall Dimension | ≈ 8,900 × 2,550 × 3,450 mm (L × W × H) |
Product Detail

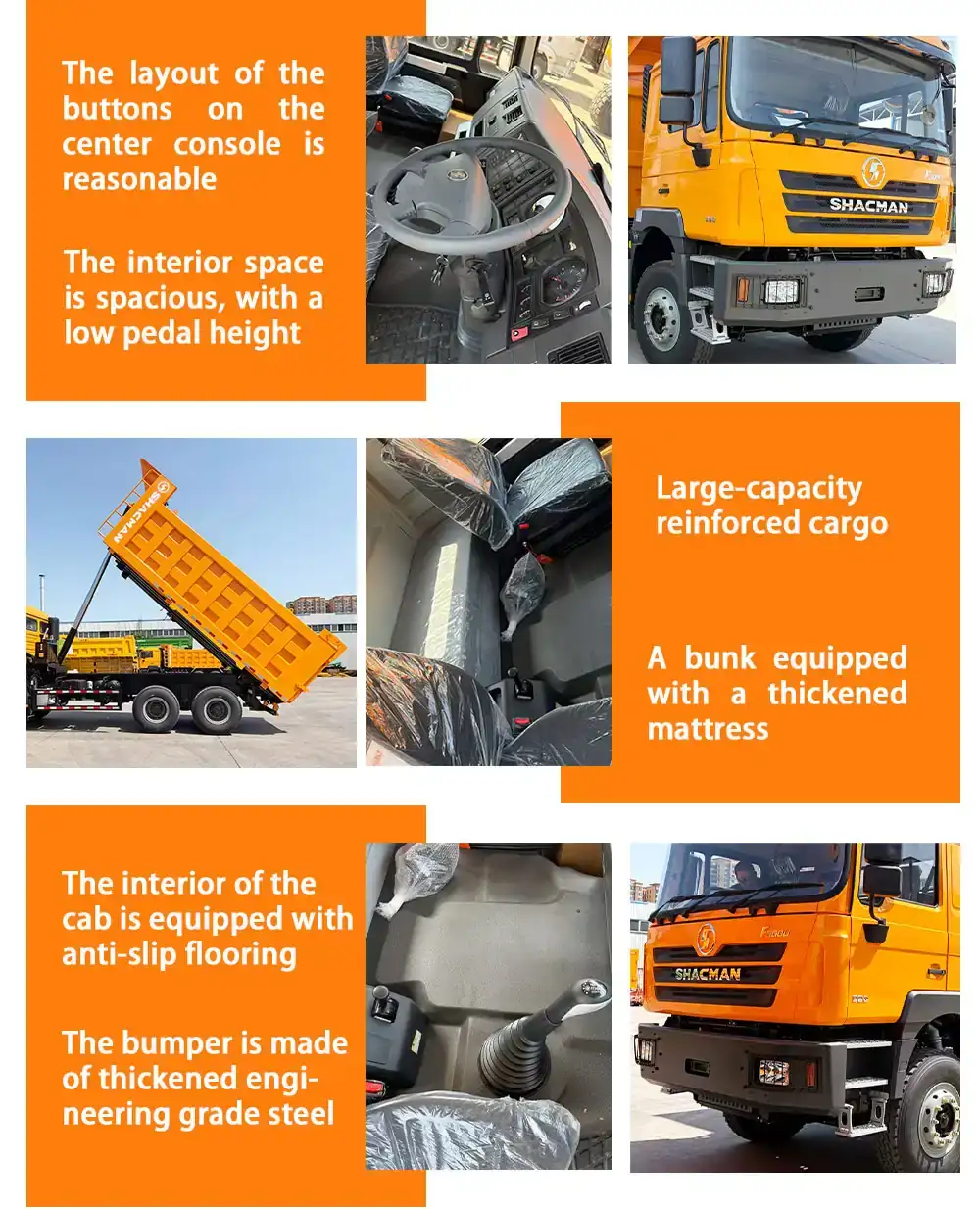

1. Cab: Low pedal height for easy entry; anti-slip flooring inside cab, control panel with well-arranged buttons, thick mattress bunk for driver rest.
2. Cargo Body: Large-capacity reinforced cargo box, high strength steel plate, anti-wear and anti-deformation.
3. Chassis & Bumper: Thickened engineering grade steel bumper, solid heavy-duty chassis to adapt to rough road.
4. Hydraulic System: Stable hydraulic cylinder, fast and safe tipping & dumping.
Ready to enhance your transport efficiency?
Packaging And Transportation
We provide diversified logistics solutions for Shacman F3000 380 dump truck export. The trucks can be shipped by bulk carrier, ro-ro vessel or flat rack container. Before loading, we will make protection for cab, tires and paint surface. We arrange port loading and crane hoisting service to ensure safe delivery to your destination port.
