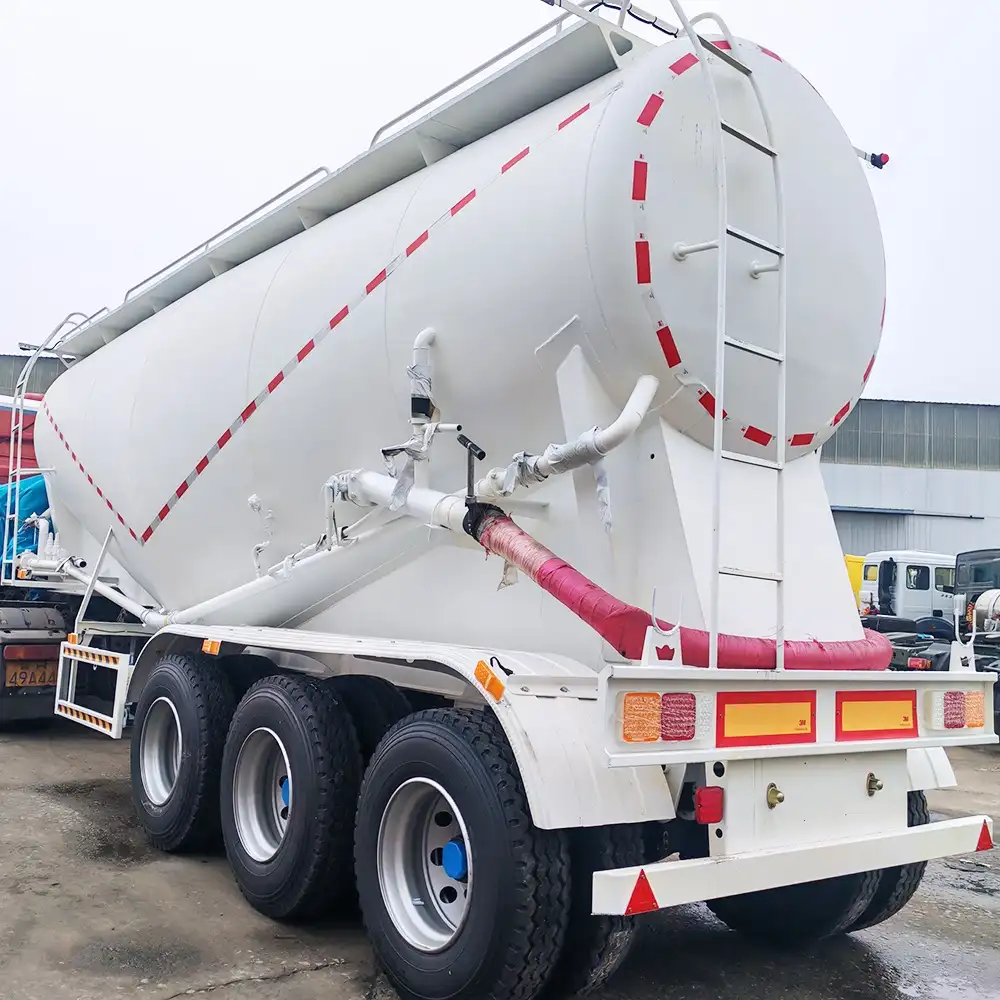

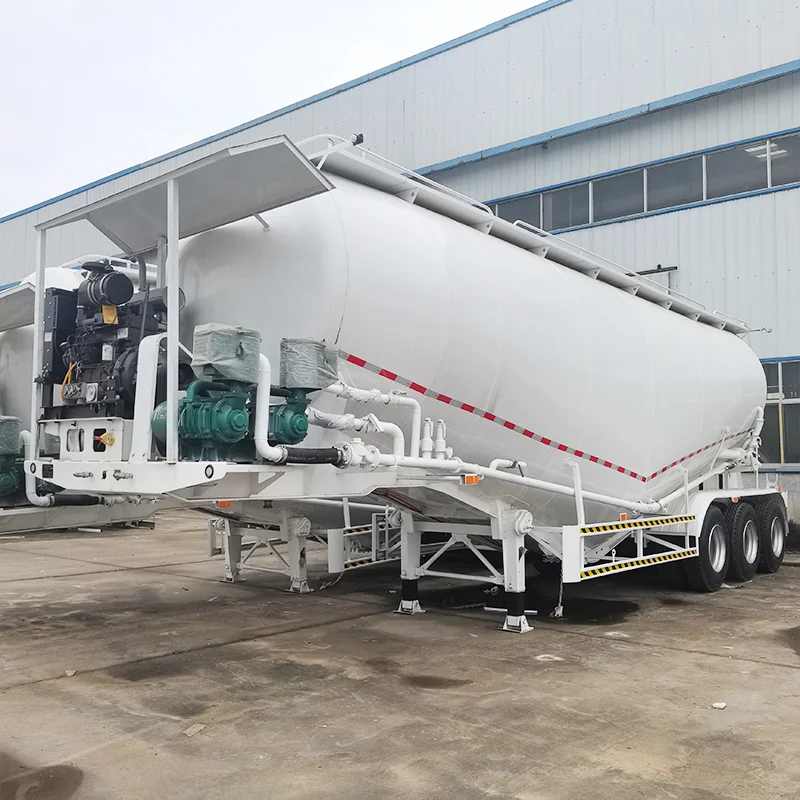

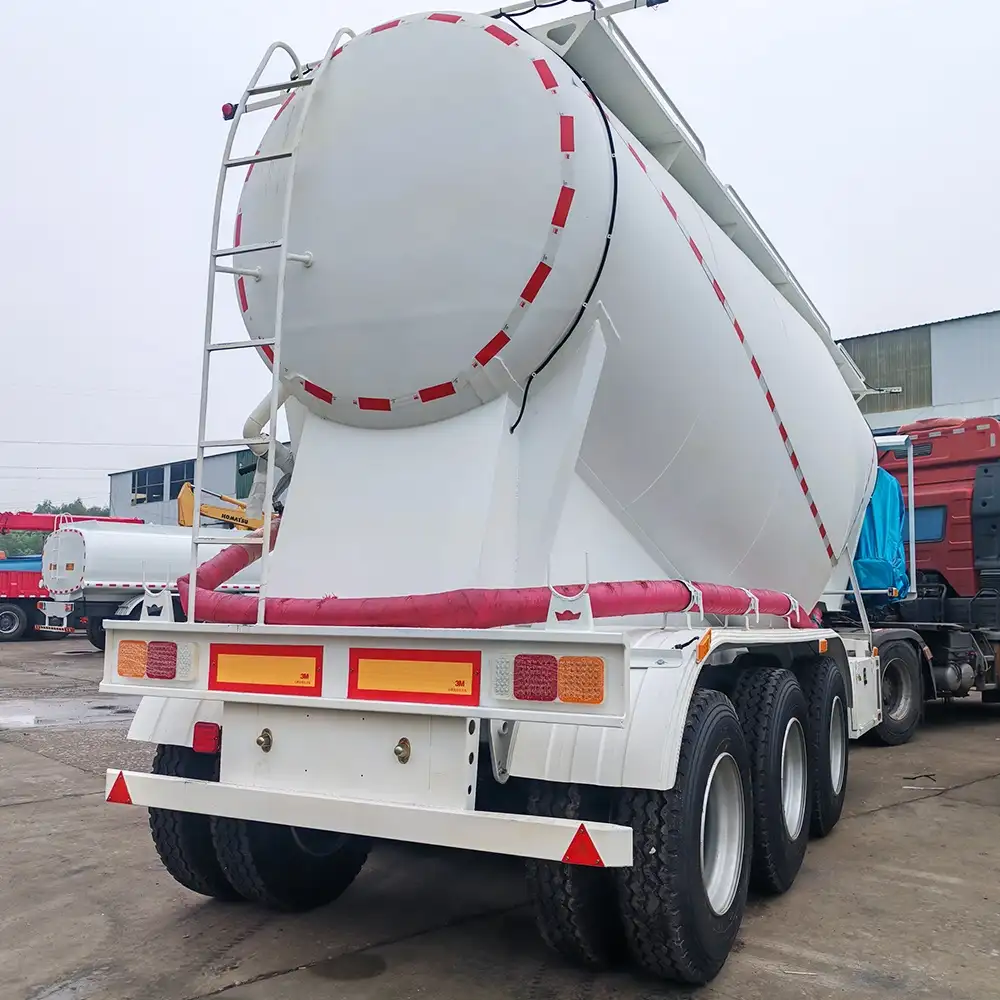

3 Axle Cement Trailer

The tank body of the powder tank semi-trailer is welded as a whole, and the pipeline system is sealed reliably. It is transported in a closed manner throughout the entire process, completely avoiding material moisture, dust, and leakage, ensuring that the quality of materials such as cement and fly ash is not affected, and eliminating environmental pollution during transportation. Adopting a scientific fluidized bed design and a double cone horizontal tank structure, the fluidization angle is reasonable, the residual discharge rate is ≤ 0.3%, and there is almost no material waste, especially suitable for the transportation of high-value powder materials

Our powder tank semi-trailer has a low center of gravity, mature suspension and axle matching, strong driving stability, and can safely pass through complex construction sites and mountainous road conditions; The tank has undergone strict pressure testing and air tightness testing, and there is no risk of tank explosion or material leakage. The unloading height can reach 15 meters, and the horizontal conveying distance is 5 meters. It can be directly unloaded to the mixing plant silo and construction site storage tank without the need for additional transfer equipment. Support customized tank volume, material (carbon steel/aluminum alloy), discharge pipeline, and air compressor configuration, suitable for different transportation scenarios (short distance distribution/long distance mainline/special materials)

Made of Q345B high-strength wear-resistant carbon steel (optional aluminum alloy lightweight material), automatically welded as a whole, with a tank wall thickness of 6mm/head thickness of 8mm, a pressure bearing capacity of ≥ 0.2MPa, and 100% airtightness testing to eliminate the risk of material leakage and tank explosion

Built in high breathability and wear-resistant fluidized belt, double cone horizontal tank body+scientific fluidization angle (12 ° -15 °), discharge residual rate ≤ 0.3%, discharge speed 1.2-1.5 tons/minute, no material waste

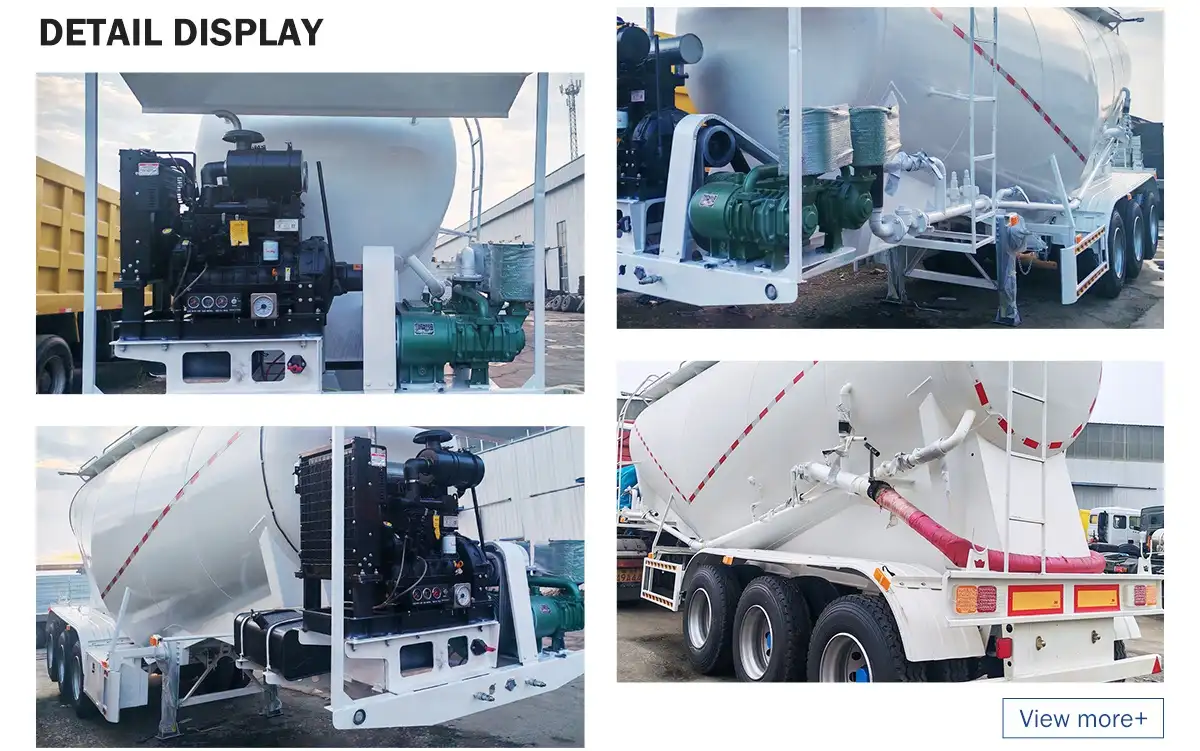

Thickened seamless steel pipe+high-temperature insulation layer (red protective cover in the picture), equipped with quick connect discharge port, discharge height up to 15 meters, horizontal conveying 5 meters, suitable for direct discharge from mixing plants/storage tanks

3-axis/4-axis high-strength axle (optional BPW/FUWA), 13 ton load capacity, equipped with 12R22.5 vacuum tires, optional air suspension/steel plate suspension, ABS anti lock braking system, stable and safe driving

Tail reflective signs, protective barriers, ladder+top safety barrier, emergency shut-off valve, pressure gauge, safety valve, in compliance with GB7258/EU E-MARK export standards

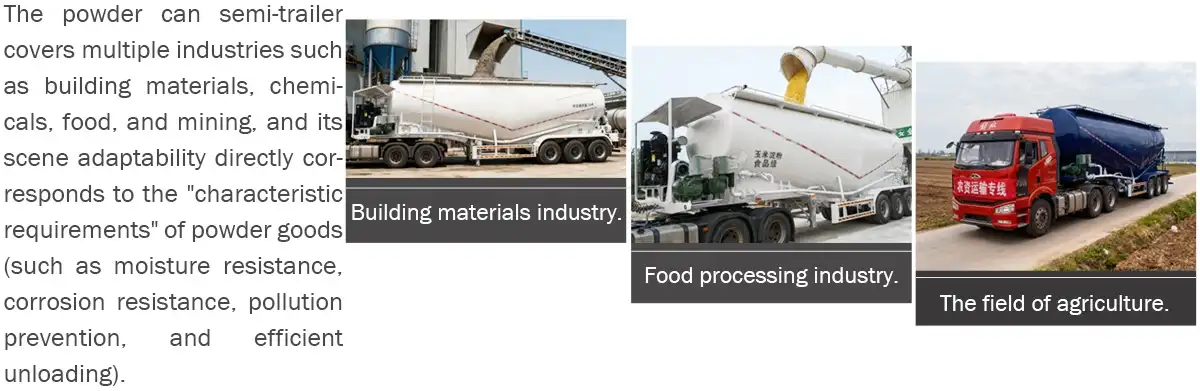

1. Core transportation categories

Suitable for dry powder particles with a particle diameter ≤ 0.1mm, the most common transportation materials include:

Construction category: bulk cement, fly ash, lime powder, mineral powder, dry powder mortar

Industrial category: mineral powder, granular alkali, coal powder, food grade flour/starch, etc

2. Core application scenarios

Bulk cement mainline transportation from cement plant to mixing plant/large construction site

Industrial material transportation of fly ash from power plants and mineral powder from mines

Continuous supply of on-site materials for large-scale infrastructure projects (high-speed rail, bridges, housing construction)

Transfer and transportation of powdered materials in ports and logistics parks

There are also various modes of transportation, and we will recommend the most suitable and cost-effective mode of transportation based on quantity and destination. In addition, we will take all necessary reinforcement and protective measures before transportation to ensure that the goods can be delivered to customers smoothly and in good condition.

\
