Product Details
Product Display

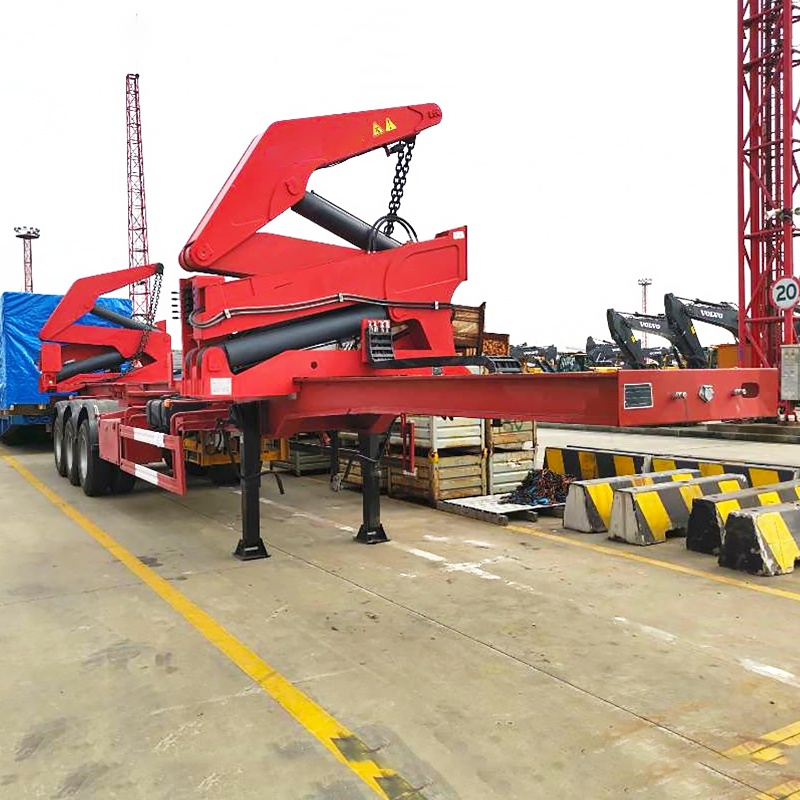

This side mounted semi-trailer is designed specifically for high-intensity operations, integrating automatic lifting, box side unloading, and long-distance transportation. Its dual crane system provides a stable and powerful side lift without the need for additional cranes or forklifts, allowing one operator to complete container transfer in five minutes, truly realizing the two core processes of one vehicle for multiple uses, self loading and unloading, and one vehicle for loading and unloading+transportation. The reinforced chassis and advanced hydraulic system ensure that this Side container crane remains stable even on uneven terrain, providing a reliable and safe 'mobile warehouse' for your fleet.
Product Parameters
| Item | Key Specifications |
| Material | High-strength Q345B carbon steel |
| Rated Capacity | 37 - 45 Tons |
| Axles | 3 Axles (FUWA/BPW 13/16 Ton) |
| Tyre | 12.00R22.5 (12 units) |
| Max. Working Range | 4 Meters |
| Landing Gear | JOST C200 heavy-duty |
| Power Source | Diesel engine Power Take-Off (PTO) |

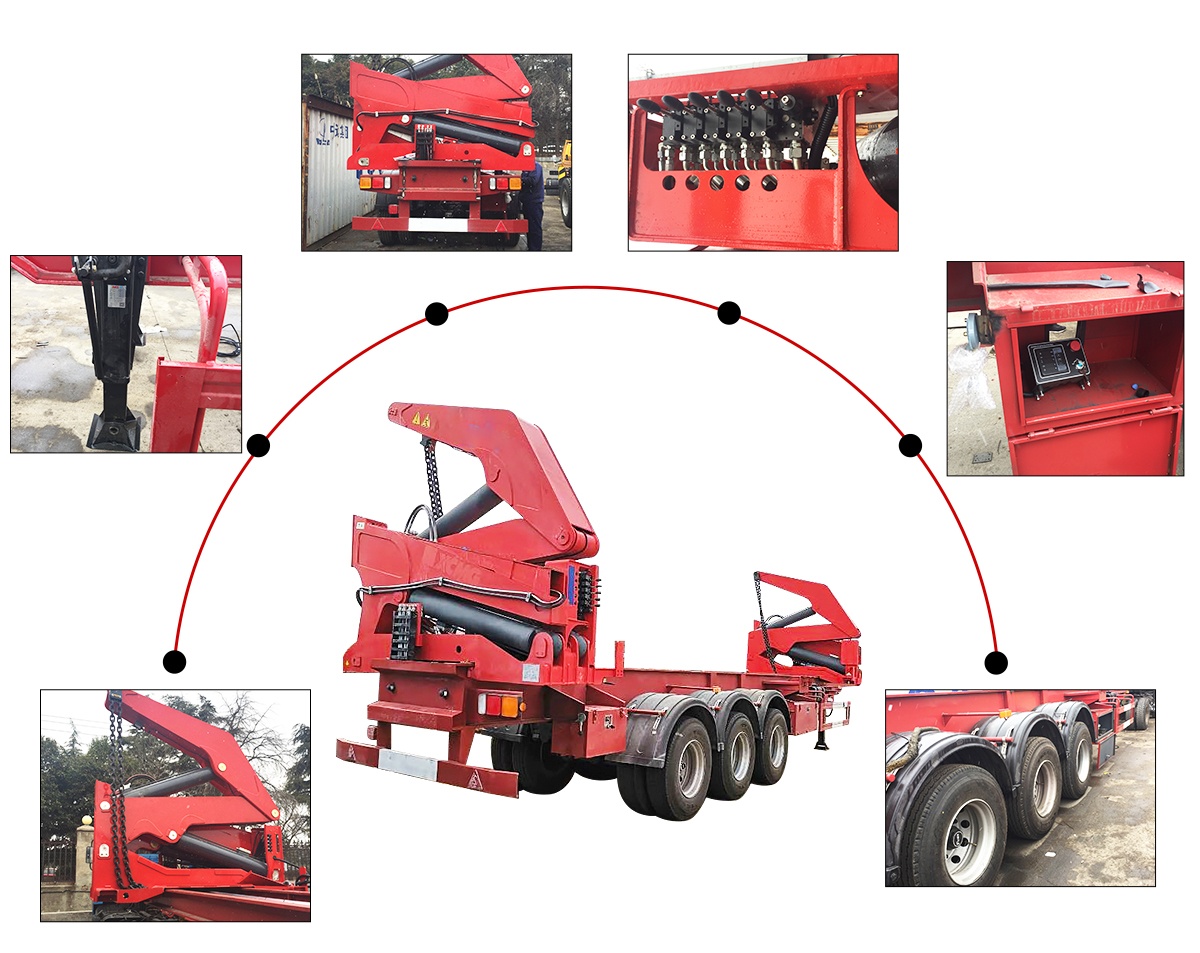

Product Details
The lifting arms of our Side crane are constructed from high-tensile structural steel, featuring reinforced weld joints for maximum fatigue resistance.
Equipped with a precision wireless remote control and a backup manual hydraulic valve block.
High-stability outriggers with a wide span, designed to automatically adjust to various ground conditions.
We use world-renowned hydraulic pumps, cylinders, and hoses with high-pressure resistance.
The cranes can slide along the chassis to accommodate both 20ft and 40ft containers.
Product Application
High-Efficiency Logistics in Diverse Environments
Urban Logistics & Ports: Ideal for picking up and dropping off containers in tight city spaces where traditional reach stackers cannot enter.
Railway Terminals: Seamlessly transfer containers between rail wagons and the Side Container Trailer.
Remote Construction Sites: Operate independently in areas lacking heavy lifting infrastructure.
Military & Emergency Relief: Rapid deployment for containerized cargo in critical situations.

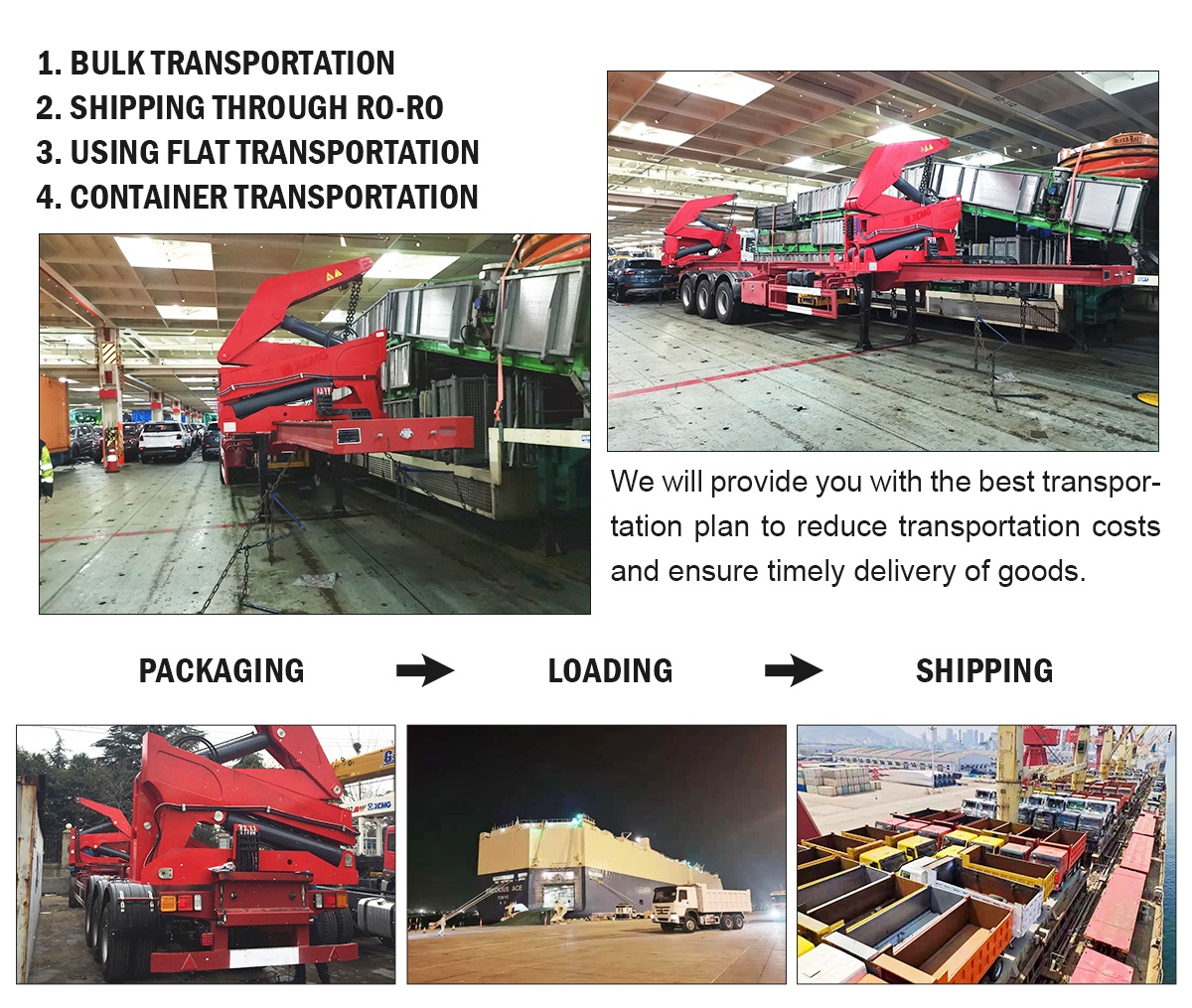

Packaging And Transportation
To ensure the safe delivery of your Side crane, we offer several professional shipping methods:
Bulk Cargo Ship: The most cost-effective method for multiple units, treated with anti-corrosive wax before shipment.
Ro-Ro Ship (Roll-on/Roll-off): Provides the best protection against sea spray and weather, as the vehicle is driven directly into the ship's deck.
Flat Rack Container: Suitable for specific high-end models, ensuring the Sidelifter Crane is secured within standard shipping dimensions.
Customer Visits
Global Partnerships & On-site Inspections
Our facility frequently hosts global clients for rigorous product testing. The smiles in our photos reflect the trust clients place in our products technology. We provide professional on-site training and technical support, ensuring every customer can operate their new equipment with confidence and maximize their operational efficiency.
