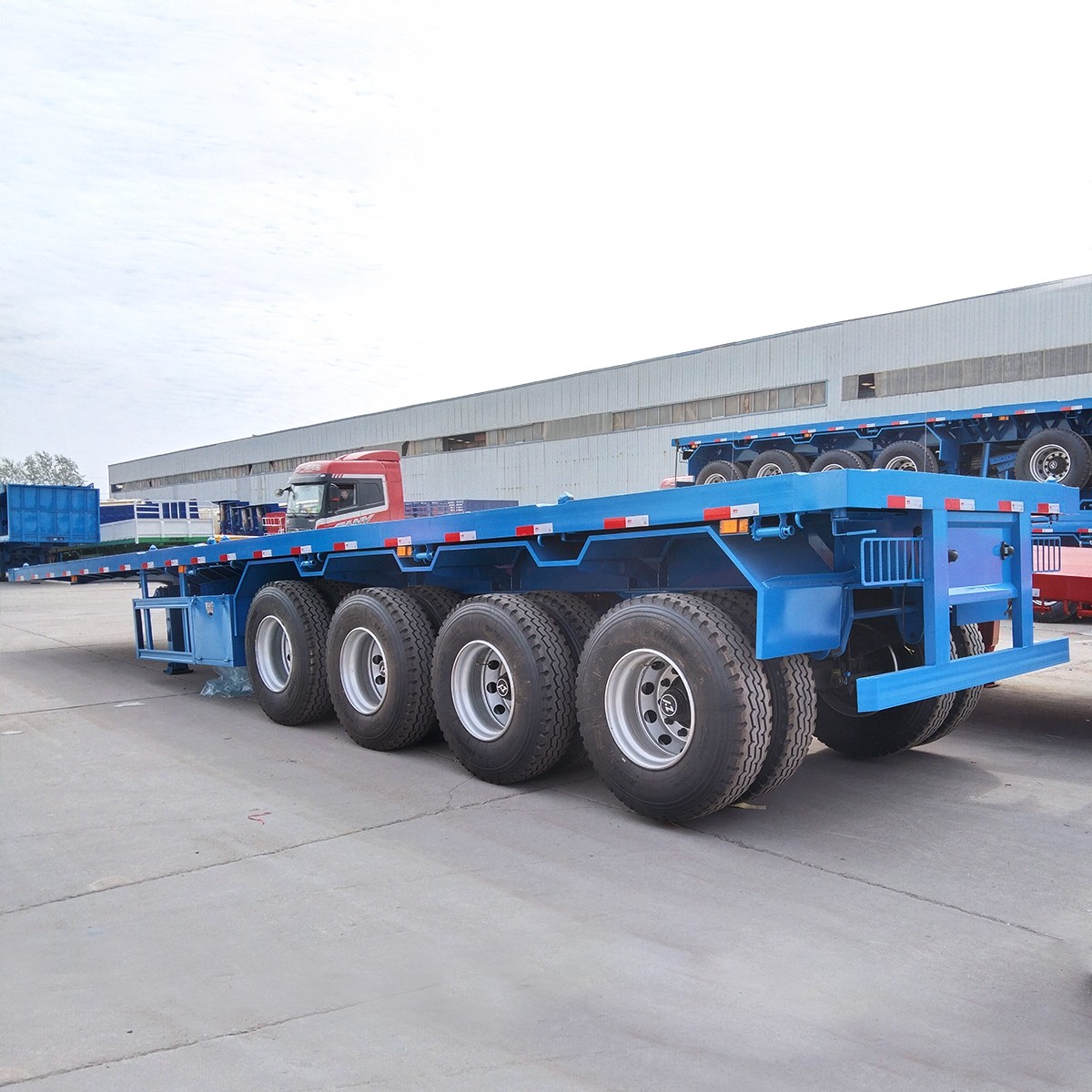

4 Axle 80 Ton Flatbed trailer

This 4 axles flatbed semi trailer made of high-strength Q345B alloy steel with integrated frame, full-welded I-beam and shot blasting treatment, delivering excellent anti-torsion and impact resistance. The 4-axle structure supports a maximum rated load of 80 tons, easily handling heavy cargo like excavators, loaders, wind power equipment and other oversized goods.The frame passes 1.2x rated load static pressure test, ensuring no deformation under long-term heavy load, with a service life of over 10 years, ideal for extreme working conditions in mining and construction.

Optional hydraulic ramps, lashing hooks, container twist locks, making it suitable for containers, steel, equipment and other cargo, realizing one trailer for multiple uses and reducing operating costs.Full-open flatbed design with no side rails or height limits, allowing 3-side loading (rear, side, top). Construction machinery can drive on/off directly, and cranes/forklifts can operate without obstacles, greatly shortening loading time and improving transport efficiency.

Low platform design (only 1.1m ground clearance) significantly lowers the vehicle's center of gravity. Combined with reinforced suspension system, it ensures excellent stability at high speed and on mountain curves, effectively preventing rollover risks.Equipped with dual-circuit air brake + ABS anti-lock system, featuring fast response and short braking distance. Matched with wear-resistant all-steel tires, ensuring driving safety on wet roads and long downhill sections.

Adopting high-strength international steel frame, the longitudinal beams are precision welded and shot blasted, with extremely strong anti torsion and seismic capabilities

Fully open tablet design, no side rails, no height restrictions, can load and unload goods from the tail, side, and top three sides

Low cargo platform design (only 1.1m above the ground) significantly reduces the center of gravity of the vehicle, coupled with a reinforced suspension system, ensuring full stability during high-speed driving and mountain road turns, effectively avoiding the risk of rollover

Equipped with dual circuit air brake and ABS anti lock braking system as standard, it has fast braking response and short braking distance. Paired with wear-resistant all steel tires, it can ensure driving safety even on wet and slippery roads, as well as long downhill sections

Adopting lightweight high-strength steel and optimized structural design, the vehicle weighs only 8.5-9.5 tons, which is 15% lighter than traditional models. It can carry more cargo on a single trip while reducing fuel consumption

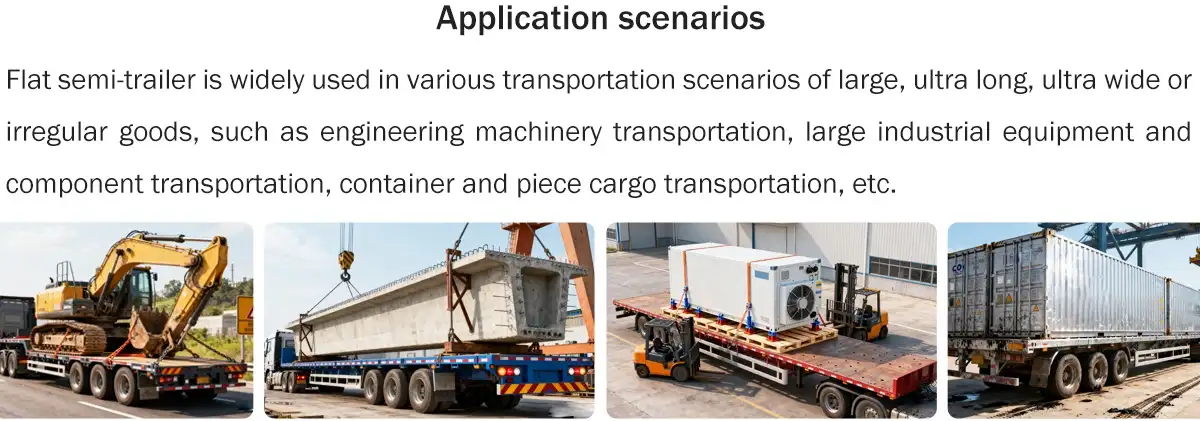

Flat semi-trailer is widely used in various transportation scenarios of large, ultra long, ultra wide or irregular goods, such as engineering machinery transportation, large industrial equipment and component transportation, container and piece cargo transportation,etc.

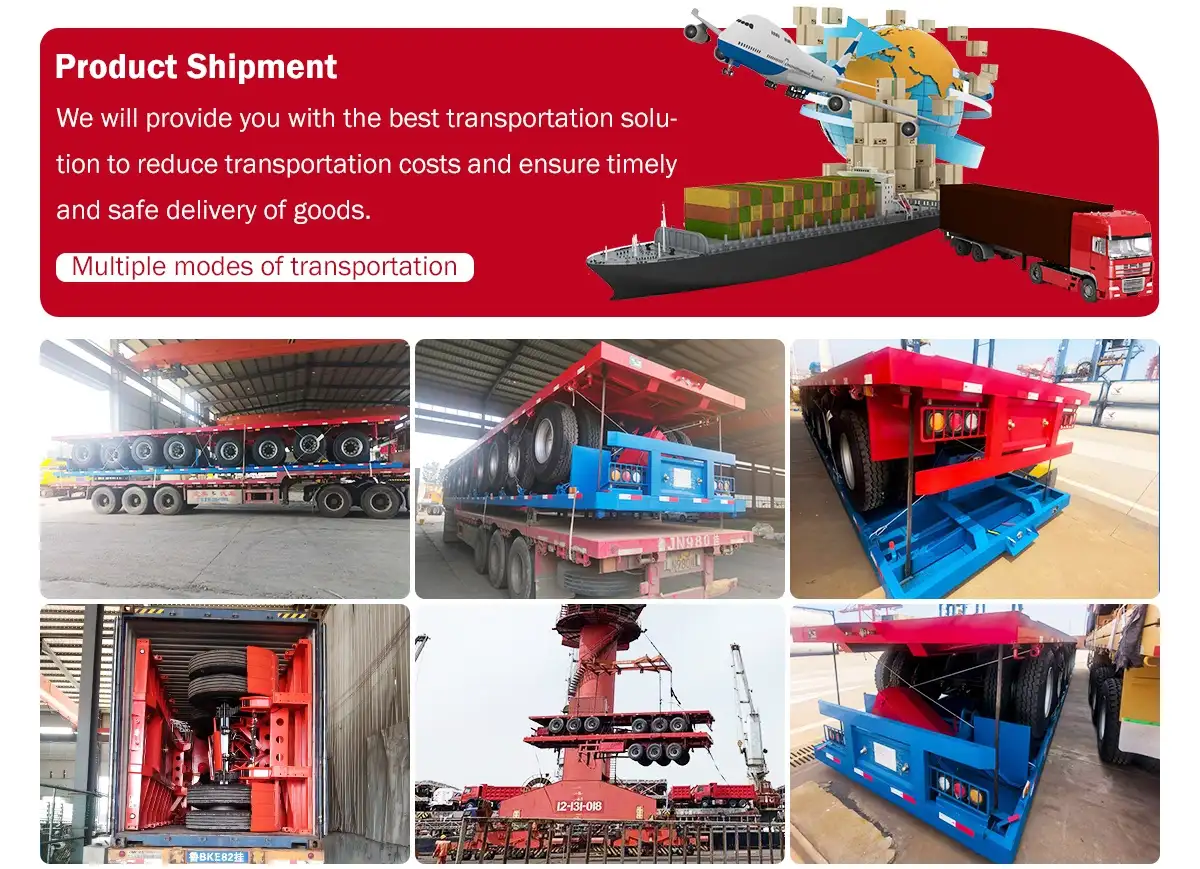

Bare assembly of the entire vehicle

The flatbed semi-trailer is a large steel structure and is usually exported as a bare vehicle.

Wrap key parts of the vehicle with waterproof cloth and wrapping film to prevent salt spray corrosion during sea transportation.

Reinforce and tie moving parts such as tires, axles, and legs to avoid shaking and displacement during navigation.

Container method (optional)

Small/short wheelbase flatbed semi trailers can be loaded into 40HQ/45HQ containers.

Extra long vehicle models generally cannot be packed and are transported by Ro Ro or Bulk Carrier.

Rust prevention and protection

Spray anti rust oil/anti rust wax on the frame and axle.

Sealing protection for electrical circuits and brake valve components.

The accompanying tools, spare tire, and instruction manual are packaged separately.

We have complete compliance qualifications: business license for legal operation, 3C certification to ensure vehicle compliance, ISO9001 international quality system certification, WMI global vehicle identity certification and other certificates. Our full chain qualifications provide high-quality specialized vehicle/semi-trailer products for global customers.
